Decorative Trench Grates

Style Width Length Thickness Frame Types
Metro 6", 8", 12", 14" 18", 24" 7/8" Angle, Channel
Continuum 6", 8", 12", 14" 18", 24" 7/8" Angle, Channel
Tsunami 6", 8", 12", 14" 18", 24" 7/8" Angle, Channel
Solid 6", 8", 12", 14" 18", 24" 7/8" Angle, Channel
** H-20 Traffic Loading options available upon request.

Streetscape and green infrastructure projects often incorporate design elements aimed at enhancing the aesthetic quality of a community or urban environment. Architectural trench grates are available in a variety of designs to compliment the visual appeal of the space while meeting pedestrian safety requirements.

Tsunami Decorative Trench Grate

Tsunami

Continuum Decorative Trench Grate

Continuum

Metro Decorative Trench Grate

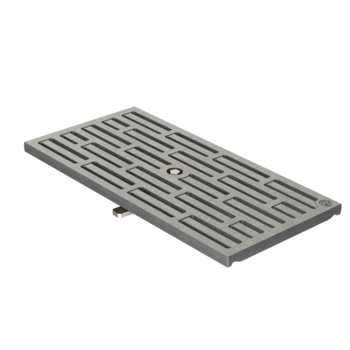

Metro

Solid Decorative Trench Grate

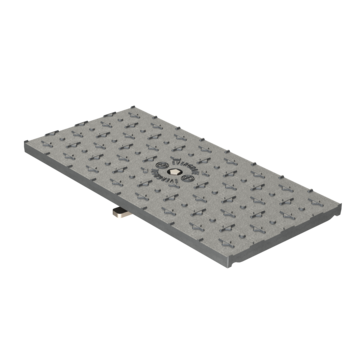

Solid

Standard Angle Trench Grate Frame

Standard Angle

Channel Frame for Trench Grates

Channel Frame

Trench drains are a linear drainage feature used for the evacuation of storm water runoff from paved areas such and parking lots and urban and commercial developments. Cast iron trench grates allow surface water to enter the trench drain while serving as an attractive and durable complement to the site surroundings. J.R. Hoe cast iron trench grates combine sleek design with the timeless aesthetic appeal of cast iron for a product that is the preferred choice in a wide range of trench drain applications.

Decorative Sidewalk Trench Grate
Decorative Pavement Trench Grate

Several key characteristics contribute to a quality trench grate product:
Design, Durability and Security.

Available In:

  • 8”, 12” and 14” Wide

  • Pedestrian and Traffic Rated

  • Various Unique Grate Designs

  • Multiple Grate Locking Options

  • Cast Iron or Fabricated Frame

Design

Trench grate design is important since they are often featured in highly visible pedestrian areas such as parks, sidewalks and parking lots. A trench grate featuring an attractive design blends in with its surroundings and enhances the aesthetic value of the development. J.R. Hoe trench grates are offered in a wide range of unique designs. As an added feature, J.R. Hoe offers the ability to have custom logos cast into the trench grate, providing a unique branding opportunity for business owners and municipalities.

Durability

The durability of trench grates is an important element in any trench drain installation. J.R. Hoe manufactures trench grates suitable for both pedestrian and traffic applications. When trench grates are used in areas that will be exposed to traffic they must meet the required H-20 load rating. J.R. Hoe trench grates are manufactured in the USA to the highest quality standards. When load rating exceeds that of normal traffic, trench grates are available in ductile iron and may be engineered for superior durability.

Security

Cast iron items such as trench grates can be targeted for theft due to their scrap value, which increases the importance of trench grate security. Various solutions are offered by J.R. Hoe to increase grate retention and trench grate security. The Penta-Lok device provides excellent theft-resistance and allows easy removal for maintenance or inspection in pedestrian areas, and traffic rated trench grates may be bolted to fabricated or cast iron frame. Custom labeling and logos may be cast into J.R. Hoe trench grates, further deterring theft.

Sidewalk Drains

Sidewalk Drain with Curb Opening Casting

Sidewalk drains are often used along with downspout boots to divert water from the downspouts across a sidewalk and into a parking lot or biofiltration area such as a rain garden, sidewalk drains are available in various attractive grate designs. Sidewalk drains, or trench drains, are an excellent stormwater management solution for pedestrian areas and green infrastructure applications.

Decorative Sidewalk Drain Grate
Tsunami Penta-Lok Locking Device

Penta-Lok design is a center locking device that offers excellent theft resistance while maintaining accessibility. A rotating lock bar secures the grate down while the pneta-head bolt enables easy removal by authorized personnel.

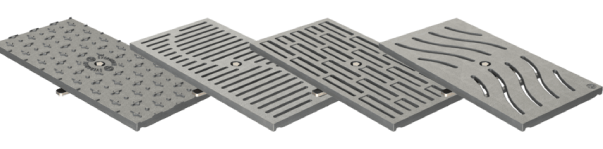

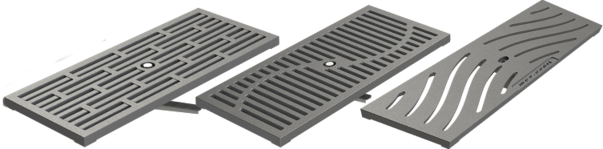

4 Styles of Decorative Trench Grates
Style Width Length Thickness Frame Types
Metro 6", 8", 12", 14" 18", 24" 7/8" Angle, Channel
Continuum 6", 8", 12", 14" 18", 24" 7/8" Angle, Channel
Tsunami 6", 8", 12", 14" 18", 24" 7/8" Angle, Channel
Solid 6", 8", 12", 14" 18", 24" 7/8" Angle, Channel
** H-20 Traffic Loading options available upon request.

Architectural trench grates are available in a variety of designs to compliment the visual appeal of the space while meeting pedestrian safety requirements.

Curb Openings

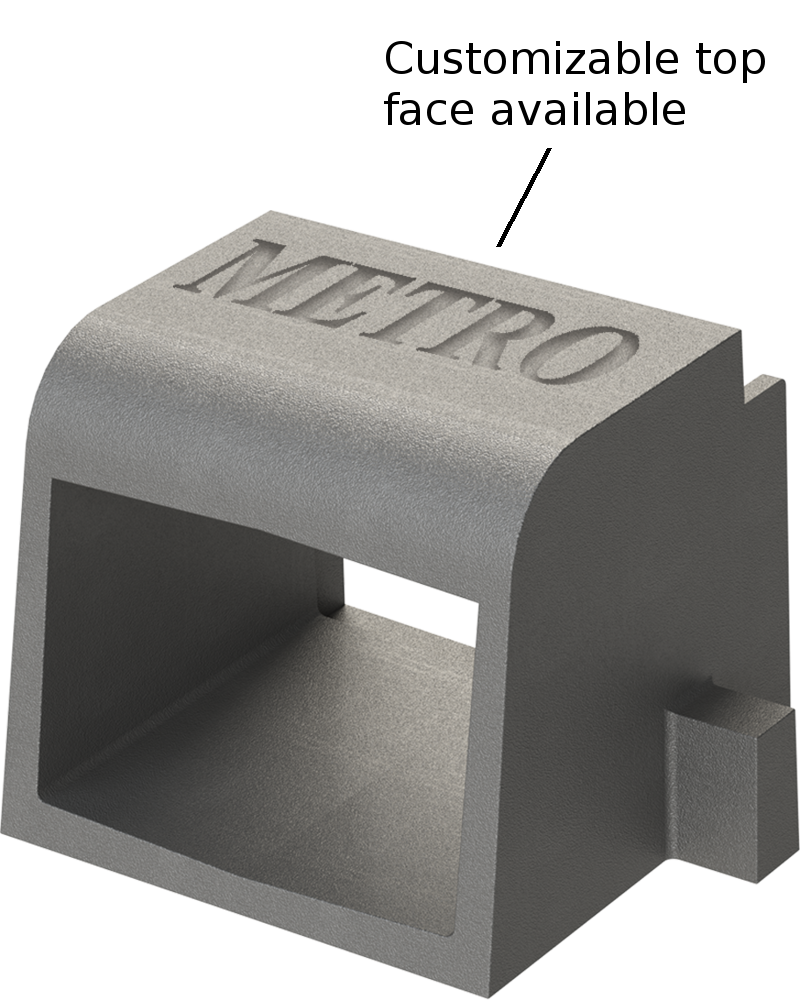

C-846T Curb Opening
Top View Product Drawing of Curb Opening
Front View Product Drawing  of Curb Opening
Section A-A View Product Drawing of Curb Opening

Curb Opening Castings protect the concrete from deterioration and resist wheel impact. Cast iron curb openings also enhance the aesthetics of the installation and may feature a custom logo or insignia.

Product Number Dimensions
C-646T 6" H x 6" W
C-846T 6" H x 8" W
C-1246T 6" H x 12" W
C-1446T 6" H x 14" W
