ANGLE FRAMES AND GRATES/COVERS
| Catalog | A | B | C | E | F | ||
|---|---|---|---|---|---|---|---|

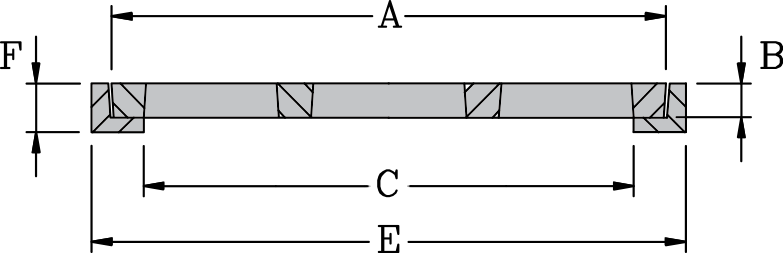

| Number | Grate | Grate Thickness | Clear Opening | Flange OD | Frame Height | Grate Type | Drain Area Sq. Ft. |
| SQUARE | |||||||
| HOE-60 | 12 x 12 | 1 | 10 x 10 | 13-1/2 x 13-1/2 | 1-1/2 | S,SC | 0.4 |
| HOE-165 | 18 x 18 | 1-1/2 | 15-1/2 x 15-1/2 | 21 x 21 | 2-1/2 | S,SC | 0.9 |
| HOE-200 | 24 x 24 | 1-1/2 | 22 x 22 | 26 x 26 | 2-1/2 | S,CD,SC | 1.4 |
| HOE-315 | 27 x 27 | 1-1/2 | 25-1/2 x 25-1/2 | 30-1/2 x 30-1/2 | 2-1/2 | S,CD,SC | 2.3 |
| HOE-368 | 32 x 32 | 1-1/2 | 29-1/4 x 29-1/4 | 32-3/4 x 32-3/4 | 1-3/4 | S,CD,SC | 2.8 |
| HOE-490 | 35-1/4 x 35-1/4 | 2 | 32-1/4 x 32-1/4 | 36-1/4 x 36-1/4 | 2-1/2 | S,CD,DF | 3.8 |
| HOE-555 | 38-3/8 x 38-3/8 | 2 | 36 x 36 | 42 x 42 | 3 | S,CD | 4.5 |
| RECTANGULAR | |||||||
| HOE-108 | 14 x 24 | 1-1/2 | 11-1/2 x 21-1/4 | 15 x 25 | 1-3/4 | S,P,SC | 0.8 |
| HOE-180 | 18 x 24 | 2 | 16 x 22-1/2 | 19 x 25 | 2-1/2 | CD | 1.2 |
| KY-230 | 17-5/8 x 29-3/4 | 2-1/2 | 15-3/4 x 27-3/4 | 20 x 31-1/2 | 3-1/2 | DF | 1.4 |
| HOE-245 | 17-5/8 x 35-1/4 | 2 | 14-7/8 x 32 | 18-1/4 x 36 | 2-1/2 | CD,DF | 1.5 |
| HOE-275 | 24 x 30 | 2 | 20 x 26 | 25-1/2 x 31-1/2 | 2-1/2 | S | 2.4 |
| HOE-330 | 24 x 36 | 2 | 21 x 33 | 25 x 37 | 2-1/2 | S | 2.9 |
| HOE-690 | 24 x 48 | 2 | 20 x 44 | 25-7/8 x 49-7/8 | 4 | CD | 3.2 |
| HOE-700 | 27-3/4 x 36 | 3 | 24 x 35 | 30 x 39-1/2 | 4 | CD | 2.4 |
Other Sizes Available
-
Cast or fabricated angle frames available
-
Grates and/or covers available as noted
-
Designed for H-20 traffic loading
Grate Types

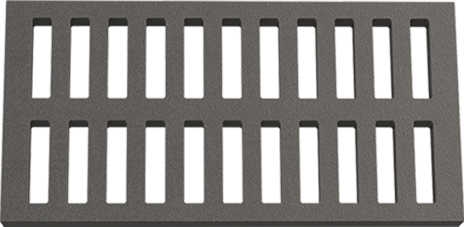

Standard

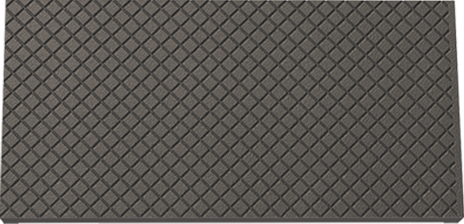

Solid

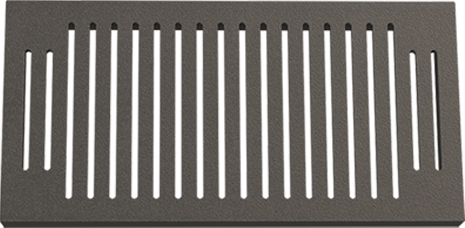

Pedestrian

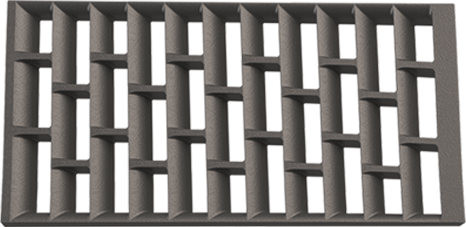

Directional

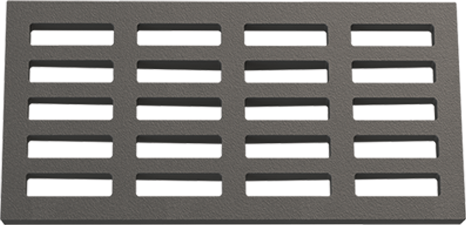

Crossdrain
